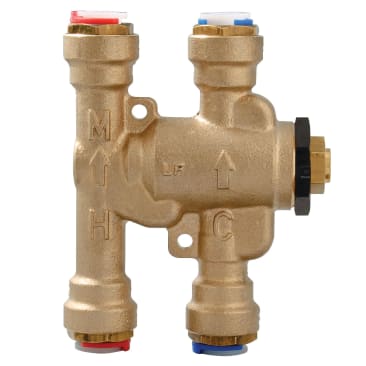

WATTS 0204154 LFUSG-B-QC 3/8 QC 80-120F THERMOSTATIC MIXING VALVE
MFR Part #: 0204154
SKU #: 1263174
Brand: WATTS®
UPC: 098268521467
WATTS 0204154 LFUSG-B-QC 3/8 QC 80-120F THERM MIX VALVE
Product Details
Attributes
Features
Resources
This 3/8 inch Under Sink Guardian(R) lead free thermostatic mixing valve is used in commercial and residential applications to control the hot water temperature and minimize the potential for accidental scalding. It is suitable for kitchen and bath installations where the water delivered to the fixtures is intended for bathing or washing. The double throttling design controls both the hot and cold water supply to the mixed outlet. This valve consists of a lead free brass body, 3/8 inch push to connect fittings, copper thermostat, check valves, integral strainer with 40 mesh stainless steel screens, and a tamper resistant locking cap. The maximum working pressure is 150 psi (1034 kPa). The water temperature can be field adjusted between 80 to 120 degrees F (27 to 49 degrees C). The recommended maximum temperature is 120 degrees F (49 degrees C). This product meets the reduced Q test statistic criteria of 0.5 ppb for lead per Section 9.5.1.1 of NSF/ANSI/CAN 61.
Country Of Origin:US
Flow Capacity:0.25 to 2.25 gpm
Nominal Size:3/8 in
Body Material:Brass
Dimensions:4 in H x 3-1/4 in W
Domestic/Import:Domestic
End Style:Push to Connect
Finish:Rough Bronze
Media:Hot/Cold Water
Pressure Rating:150 psi
Series:LFUSG-B
Softgoods Material:Buna-N
Temperature Rating:80 to 120 deg F
Trim Material:Stainless Steel
Type:Under Sink Guardian
- Accurate temperature control with low pressure drop
- Built-in check valves prevent hot and cold water cross flow
- Provides superior flow rate between 0.25 and 2.5 GPM
- ASSE 1070 listed and CSA certified
- Meets the reduced Q test statistic criteria of 0.5 ppb for lead per Section 9.5.1.1 of NSF/ANSI/CAN 61
Product Details
This 3/8 inch Under Sink Guardian(R) lead free thermostatic mixing valve is used in commercial and residential applications to control the hot water temperature and minimize the potential for accidental scalding. It is suitable for kitchen and bath installations where the water delivered to the fixtures is intended for bathing or washing. The double throttling design controls both the hot and cold water supply to the mixed outlet. This valve consists of a lead free brass body, 3/8 inch push to connect fittings, copper thermostat, check valves, integral strainer with 40 mesh stainless steel screens, and a tamper resistant locking cap. The maximum working pressure is 150 psi (1034 kPa). The water temperature can be field adjusted between 80 to 120 degrees F (27 to 49 degrees C). The recommended maximum temperature is 120 degrees F (49 degrees C). This product meets the reduced Q test statistic criteria of 0.5 ppb for lead per Section 9.5.1.1 of NSF/ANSI/CAN 61.
Attributes
Country Of Origin: US
Flow Capacity: 0.25 to 2.25 gpm
Nominal Size: 3/8 in
Body Material: Brass
Dimensions: 4 in H x 3-1/4 in W
Domestic/Import: Domestic
End Style: Push to Connect
Finish: Rough Bronze
Media: Hot/Cold Water
Pressure Rating: 150 psi
Series: LFUSG-B
Softgoods Material: Buna-N
Temperature Rating: 80 to 120 deg F
Trim Material: Stainless Steel
Type: Under Sink Guardian
Features
- Accurate temperature control with low pressure drop
- Built-in check valves prevent hot and cold water cross flow
- Provides superior flow rate between 0.25 and 2.5 GPM
- ASSE 1070 listed and CSA certified
- Meets the reduced Q test statistic criteria of 0.5 ppb for lead per Section 9.5.1.1 of NSF/ANSI/CAN 61
