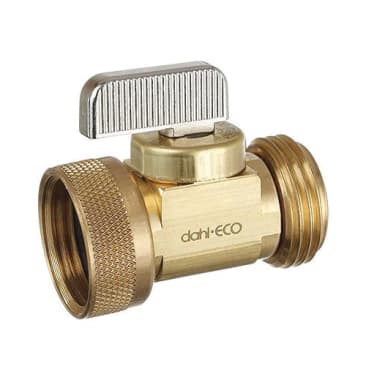

DAHL 521-04F-04 MHXFH SWVL HOSE STRAIGHT VALVE
MFR Part #: 521-04-04F
SKU #: 1164524
Brand: dahl
UPC: 773341930588
dahl dahal-Eco™ mini-ball™ 521-04-04F Straight Hose and Boiler Drain, Hose x Female Swivel Hose, 250 psi, Brass, Domestic
Lifetime
CSA Certified | NSF 61-G/372 | UPC Listed
Product Details
Attributes
Features
Resources
dahl dahal-Eco™ mini-ball™ Hose and Boiler Drain, Straight, Hose x Female Swivel Hose, 250 psi, 250 deg F, 2 in Inlet to Outlet Length, 1.2 in Top to Inlet Center, Brass Body, EPDM O-Ring/PTFE Seal, Rough Brass, 1-1/2 in W, Domestic
Country Of Origin:Canada
Body Material:Brass
Dimensions:1-1/2 in W
Domestic/Import:Domestic
Finish:Rough Brass
Inlet Connection:Male Hose
Inlet to Outlet Length:2 in
Material:Lead-Free Brass
Operation:Plated Handle
Outlet Connection:Fem. Swivel Hose
Pattern:Straight
Pressure Rating:250 psi
Softgoods Material:EPDM O-Ring/PTFE Seal
Temperature Rating:250 deg F
Top to Inlet Center:1.2 in
Type:Straight
- Nickel plated handle operation
- 3 Cv
- Lead free
Product Details
dahl dahal-Eco™ mini-ball™ Hose and Boiler Drain, Straight, Hose x Female Swivel Hose, 250 psi, 250 deg F, 2 in Inlet to Outlet Length, 1.2 in Top to Inlet Center, Brass Body, EPDM O-Ring/PTFE Seal, Rough Brass, 1-1/2 in W, Domestic
Attributes
Country Of Origin: Canada
Body Material: Brass
Dimensions: 1-1/2 in W
Domestic/Import: Domestic
Finish: Rough Brass
Inlet Connection: Male Hose
Inlet to Outlet Length: 2 in
Material: Lead-Free Brass
Operation: Plated Handle
Outlet Connection: Fem. Swivel Hose
Pattern: Straight
Pressure Rating: 250 psi
Softgoods Material: EPDM O-Ring/PTFE Seal
Temperature Rating: 250 deg F
Top to Inlet Center: 1.2 in
Type: Straight
Features
- Nickel plated handle operation
- 3 Cv
- Lead free
