OASIS 503802 R1P REMOTE CHILLER
MFR Part #: 503802
SKU #: 1239508
Brand: OASIS®
UPC: 9202614787

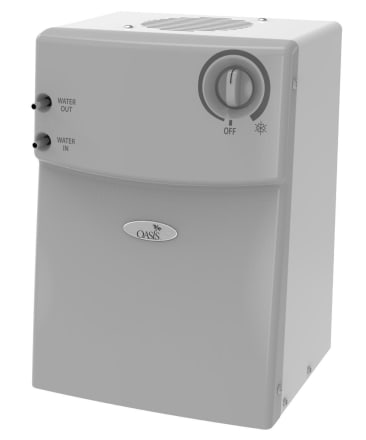

OASIS® 503802 Water Chiller, 1/20 hp, 150 V, 1.2 A, Import
1 Year
CAN/CSA C22.2 No.120 | UL 399 | NSF/ANSI Standard 61-G & 372
Product Details
Attributes
Features
Resources
OASIS®, 503802, Water Chiller, 1/20 hp, 150 V, 1.2 A, 135 W Wattage, R-134A Refrigerant, 10-5/16 in Width, 8-23/32 in Depth, 14-5/8 in Height, Import
Additional Information:
Powder-Coated Galvanized
Amperage Rating:
1.2 A
Cooling Capacity:
1 gph
Cord Length:
4 ft
Country Of Origin:
Mexico
Depth:
8-23/32 in
Domestic/Import:
Import
Height:
14-5/8 in
Horsepower:
1/20 hp
Housing Color:
White
Housing Material:
Steel/Plastic
HP Rating:
1/20 hp
Model:
R1P
Overall Depth:
8-23/32 in
Overall Length:
14-5/8 in
Overall Width:
10-5/16 in
Pipe Connection Size:
1/4 in
Pipe Connection Type:
Tube
Plug Type:
NEMA 5-15
Power Rating:
135 W
Refrigerant Type:
R-134A
Tank Material:
Stainless Steel
Temperature Rating:
90 deg F
Voltage Rating:
115 VAC, 150 V
Wattage:
135 W
Width:
10-5/16 in
- Air-cooled - designed to under a sink
- Compact, economical and easily installed
- Stainless steel storage tank
- 1/4 in OD stainless steel water tube connections
- Welded water lines to eliminate corrosion and assure leakproof operation
Product Details
OASIS®, 503802, Water Chiller, 1/20 hp, 150 V, 1.2 A, 135 W Wattage, R-134A Refrigerant, 10-5/16 in Width, 8-23/32 in Depth, 14-5/8 in Height, Import
Attributes
Additional Information: Powder-Coated Galvanized
Amperage Rating: 1.2 A
Cooling Capacity: 1 gph
Cord Length: 4 ft
Country Of Origin: Mexico
Depth: 8-23/32 in
Domestic/Import: Import
Height: 14-5/8 in
Horsepower: 1/20 hp
Housing Color: White
Housing Material: Steel/Plastic
HP Rating: 1/20 hp
Model: R1P
Overall Depth: 8-23/32 in
Overall Length: 14-5/8 in
Overall Width: 10-5/16 in
Pipe Connection Size: 1/4 in
Pipe Connection Type: Tube
Plug Type: NEMA 5-15
Power Rating: 135 W
Refrigerant Type: R-134A
Tank Material: Stainless Steel
Temperature Rating: 90 deg F
Voltage Rating: 115 VAC, 150 V
Wattage: 135 W
Width: 10-5/16 in
Features
- Air-cooled - designed to under a sink
- Compact, economical and easily installed
- Stainless steel storage tank
- 1/4 in OD stainless steel water tube connections
- Welded water lines to eliminate corrosion and assure leakproof operation
