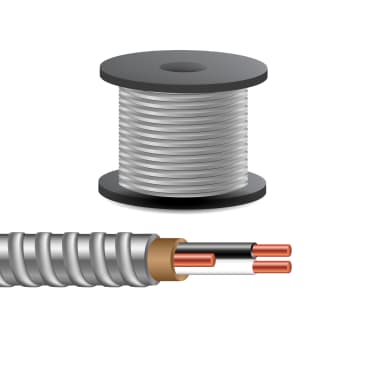

2C-12 SOLID COPPER AC90 WIRE (75M)
MFR Part #: AC90
SKU #: 0700185
Brand: Approved Vendor
UPC: 400000507125
U304921 Armored Cable, 600 V, 2 -Conductor, 12 AWG Conductor, 75 m L, Copper Conductor, Aluminum Armor
For open and concealed wiring, cable troughs and ventilated flexible cableways in dry locations, ceiling fixtures, commercial, industrial and apartment use
Product Details
Attributes
Armored Cable, 600 V, 20 A, 2 Conductors, Copper Conductor, Aluminum Armor, 12 AWG Conductor, 0.51 in Outside Dia, 0.03 in Insulation Thickness, 75 m Length, 1 Strands, Solid/Stranded: Solid, Black/White Insulation, XLPE Insulation, -40 to 90 deg C
Amperage Rating:
20 A
Armor Material:
Aluminum
Conductor Material:
Copper
Conductor Size:
12 AWG
Insulation Color:
Black/White
Insulation Material:
XLPE
Insulation Thickness:
.03 in
Length:
75 m
Number of Conductors:
2
Number of Strands:
1
Outside Diameter:
.51 in
Solid/Stranded:
Solid
Temperature Rating:
-40 to 90 deg C
Voltage Rating:
600 V
Product Details
Armored Cable, 600 V, 20 A, 2 Conductors, Copper Conductor, Aluminum Armor, 12 AWG Conductor, 0.51 in Outside Dia, 0.03 in Insulation Thickness, 75 m Length, 1 Strands, Solid/Stranded: Solid, Black/White Insulation, XLPE Insulation, -40 to 90 deg C
Attributes
Amperage Rating: 20 A
Armor Material: Aluminum
Conductor Material: Copper
Conductor Size: 12 AWG
Insulation Color: Black/White
Insulation Material: XLPE
Insulation Thickness: .03 in
Length: 75 m
Number of Conductors: 2
Number of Strands: 1
Outside Diameter: .51 in
Solid/Stranded: Solid
Temperature Rating: -40 to 90 deg C
Voltage Rating: 600 V
