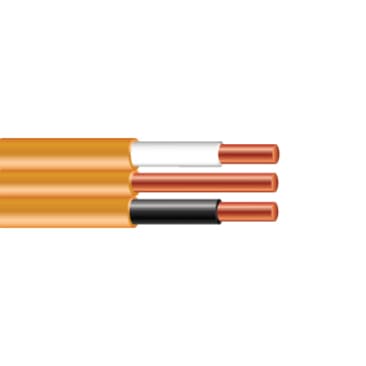

WIRE NMD-90 Image 1

2C-10 (150M) SOLID COPPER NMD90 WIRE ORANGE

MFR Part #: NMD-90
SKU #: 0700113
Brand: Approved Vendor
UPC: 032886021619
Romex® SIMpull® 47176304 Building Wire, 300 V, 2-Conductor, Stranded Conductor, 10 AWG Conductor, 0.481 in L
For both exposed work in dry locations or concealed work in dry or damp locations
ASTM Specified | CEC Part I Rule 14-104(2) | CSA C22.2 No. 48

Romex® Building Wire, 300 V, 40 A, 2 Conductors, Stranded Conductor, 10 AWG Conductor, Copper Conductor, 0.23 in OD, 0.481 in Length, 0.034 in Insulation Thickness, Stranded, 1 Strands, PVC/Nylon Insulation, PVC Jacket, Orange Jacket, 30 mil Jacket Thickness, -25 to 90 deg C, Spool Package, 492 ft L Package

Product Details

Romex® Building Wire, 300 V, 40 A, 2 Conductors, Stranded Conductor, 10 AWG Conductor, Copper Conductor, 0.23 in OD, 0.481 in Length, 0.034 in Insulation Thickness, Stranded, 1 Strands, PVC/Nylon Insulation, PVC Jacket, Orange Jacket, 30 mil Jacket Thickness, -25 to 90 deg C, Spool Package, 492 ft L Package

Attributes

Amperage Rating: 40 A
Conductor Material: Copper
Conductor Size: 10 AWG
Conductor Type: Stranded
Insulation Material: PVC/Nylon
Insulation Thickness: .034 in
Jacket Color: Orange
Jacket Material: PVC
Jacket Thickness: 30 mil
Length: .481 in
Number of Conductors: 2
Outside Diameter: .23 in
Package Type: Spool
Solid/Stranded: Stranded
Strands: 1
Temperature Rating: -25 to 90 deg C
Voltage Rating: 300 V
Additional Information: 492 ft L Package

Features

  • Two-conductor cable with a bare grounding conductor
  • It is manufactured using annealed (soft) copper conductors compressed standing for stranded conductors
  • A heat-resistant thermoplastic polyvinyl chloride (PVC) insulation and nylon jacket for the individual conductors with a PVC jacket for the overall construction
  • Romex® SIMpull ® NMD90 conductors feature SIM technology jackets which reduces the coefficient of friction, allowing cables to be installed without external lubricants, resulting in reduced labor and materials costs
  • Material should be properly stored above 0 deg C for 24 hr prior to installation

Resources

Specification Sheet
