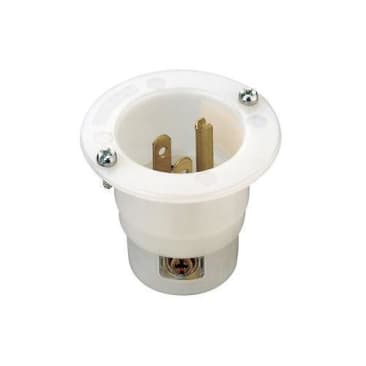

LEVITON 5278-C Image 1

LEVITON 5278-C 15A 125V 2-POLE 3-WIRE NYLON FLANGED INLET WHITE

MFR Part #: 5278-C
SKU #: 0777025
Brand: Leviton®
UPC: 078477795392
Leviton® 5278-C Grounding Inlet Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Lifetime
Commercial Applications
ANSI C73 | NOM 057 | NEMA WD1/WD6 | CSA C22.2 No. 42 File No. LR406 | UL 498 File No. E13399 | Federal Specification WC596 File No. E13393 | UL94 V-2 Flammability Rating

Leviton®, 5278-C, Inlet Receptacle, Grounding, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Commercial/Industrial Grade, -40 to 60 deg C, Back Wire Terminal, Nylon, White, 2.5 in Dia x 1.78 in H Dimensions

Leviton® straight blade power inlets are suitable for industrial indoor and outdoor applications. Glass filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather resistant fit.

Product Details

Leviton®, 5278-C, Inlet Receptacle, Grounding, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Commercial/Industrial Grade, -40 to 60 deg C, Back Wire Terminal, Nylon, White, 2.5 in Dia x 1.78 in H Dimensions

Leviton® straight blade power inlets are suitable for industrial indoor and outdoor applications. Glass filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather resistant fit.

Attributes

Country Of Origin: Mexico
Amperage Rating: 15 A
Color: White
Dimensions: 2.5 in Dia x 1.78 in H
Grade: Commercial/Industrial
Horsepower: 1/2 hp
Material: Nylon
NEMA Rating: NEMA 5-15P
Number of Poles: 2
Number of Wires: 3
Temperature Rating: -40 to 60 deg C
Terminal Type: Back Wire
Type: Grounding
Voltage Rating: 125 VAC

Features

  • 18 to 10 AWG terminal accommodation
  • 2000 VAC minimum dielectric strength
  • Flange mounting
  • Nylon wire module
  • Solid brass blades
  • Brass terminal screws
  • Zinc plated steel assembly

Resources

Instruction/Installation Manual
Owners/User Manual
Specification Sheet
