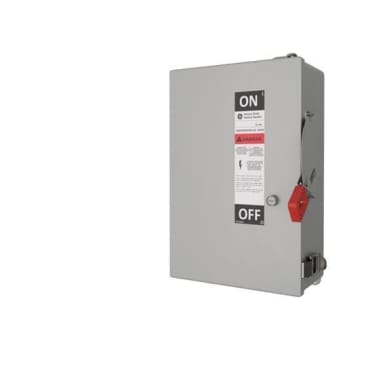

ABB TH4363 Image 1

ABB TH4363 100A 3P 600V FUSIBLE HD SWITCH D

MFR Part #: TH4363
SKU #: 1238145
Brand: GE
UPC: 783164604801
GE TH4363 Enclosed Heavy Duty Fusible Safety Switch, 600 V AC, 100 A, 3 Poles
For Heavy
UL standard 98 | CSA standard 22.2 no. 4-04 | NEMA KS1 standard

GE, TH4363, Safety Switch, Enclosed Heavy Duty Fusible, 600 V AC, 100 A, 3 ph, 50/60 Hz Frequency, 3 Pole, 4 Wires, Donut Handle Actuator, NEMA 1 Enclosure, 3-Point Mounting, Line/Load Lug Terminal, 22.33 in H x 9.32 in W x 4.81 in D Dimensions, Stainless Steel

Product Details

GE, TH4363, Safety Switch, Enclosed Heavy Duty Fusible, 600 V AC, 100 A, 3 ph, 50/60 Hz Frequency, 3 Pole, 4 Wires, Donut Handle Actuator, NEMA 1 Enclosure, 3-Point Mounting, Line/Load Lug Terminal, 22.33 in H x 9.32 in W x 4.81 in D Dimensions, Stainless Steel

Attributes

Amperage Rating: 100 A
Enclosure Type: NEMA 1
Number of Poles: 3
Actuator Type: Donut Handle
Dimensions: 22.33 in H x 9.32 in W x 4.81 in D
Frequency Rating: 50/60 Hz
Material: Stainless Steel
Mounting Type: 3-Point
Number of Wires: 4
Phase: 3
Terminal Type: Line/Load Lug
Type: Enclosed Heavy Duty Fusible
Voltage Rating: 600 V AC
