ALLTEMP 45075H Image 1

ALLTEMP 45075H 370/440V CAPACITOR 7.5MFD

MFR Part #: 45075H
SKU #: 1246623
Brand: Diversitech
UPC: 095247413393

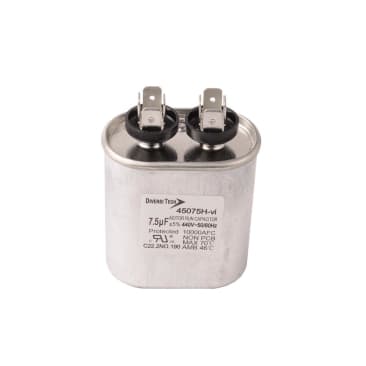

Diversitech 45075H Single Motor Run Capacitor, 7.5 uF, 440 V AC, Oval
CSA 22.2 No 190 | IEC 60252 | UL 810

Diversitech Motor Run Capacitor, Single, 7.5 uF, 440 V AC, Oval, Metal Case, 50/60 Hz, +/- 5% Tolerance, 2.17 in H Case, Import

These single capacitance oval, metal can capacitors are designed for continuous run.

Product Details

Diversitech Motor Run Capacitor, Single, 7.5 uF, 440 V AC, Oval, Metal Case, 50/60 Hz, +/- 5% Tolerance, 2.17 in H Case, Import

These single capacitance oval, metal can capacitors are designed for continuous run.

Attributes

Country Of Origin: China
Capacitance: 7.5 uF
Case Material: Metal
Domestic/Import: Import
Shape: Oval
Specifications: 50/60 Hz, +/- 5% Tolerance, 2.17 in H Case
Type: Single
Voltage Rating: 440 V AC

Features

  • Guaranteed for 10000 hr of life under normal operating conditions
  • Operating life of 94% at 60000 hr
  • Meets 10000 AFC safety requirement per UL 810
  • Individually packaged
  • Between terminals: Rated voltage x 1.75 VAC, 10 s withstand voltage test
  • Between terminals and case: Rated voltage x 2+1000 VAC, 60 s withstand voltage test
  • Maximum permissible voltage: 110 percent of the rated voltage
  • Maximum permissible current: 130 percent of the rated current
  • Oil filled, non PCB
  • 1/4 in quick connect terminal

Resources

Specification Sheet
