BECKETT S220-20 OIL DE-AERATOR
Product Details
Attributes
Features
Resources

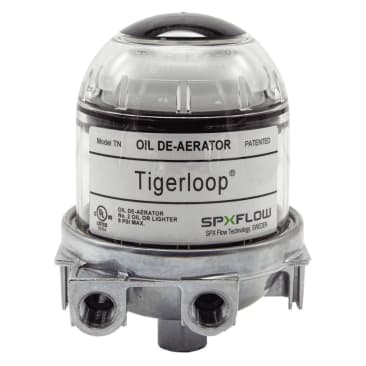

Beckett® Oil Deaerator, 1/4 in Connection, FNPT Connection, Additional Information: Model TN, 29 gph Flow Rate, 8 psi Maximum Inlet Pressure
The UL listed Tigerloop® TN Oil Deaerator improves efficiency and extends the life of oil heating systems combining the benefits of a single pipe system with a two pipe system. Compatible with standard heating fuels and Biodiesel up to 5% (B5). S220 includes Firomatic fusible valve, S220-11 includes both Firomatic fusible valve and 36" flexible oil lines.
- Reduces air in the system by up to 95%
- Reduces running vacuum
- Significantly reduces potential leak hazard
- Conditions oil for cleaner combustion
- Reduces lockouts, flameouts and sputters
- Extends filter element life
- Maximum nozzle capacity of 29.0 GPH
- Temperature range of 20 to 105 deg F
Product Details
Beckett® Oil Deaerator, 1/4 in Connection, FNPT Connection, Additional Information: Model TN, 29 gph Flow Rate, 8 psi Maximum Inlet Pressure
The UL listed Tigerloop® TN Oil Deaerator improves efficiency and extends the life of oil heating systems combining the benefits of a single pipe system with a two pipe system. Compatible with standard heating fuels and Biodiesel up to 5% (B5). S220 includes Firomatic fusible valve, S220-11 includes both Firomatic fusible valve and 36" flexible oil lines.
Attributes
Features
- Reduces air in the system by up to 95%
- Reduces running vacuum
- Significantly reduces potential leak hazard
- Conditions oil for cleaner combustion
- Reduces lockouts, flameouts and sputters
- Extends filter element life
- Maximum nozzle capacity of 29.0 GPH
- Temperature range of 20 to 105 deg F
