DAHL 611-13-31-WHA 1/2X3/8OD CXCMP WATER HAMMER ARRESTOR ANGLE STOP LEAD FREE
MFR Part #: 611-13-31-14WHA
SKU #: 1164543
Brand: dahl
UPC: 400007018983

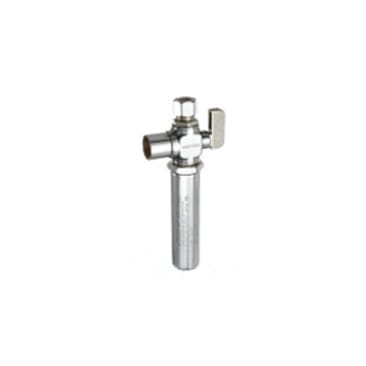

dahl 611-13-31-14WHA Supply Stop Valve With Integral Water Hammer Arrester, 1/2 x 3/8 in Nominal, Handle Actuator
Lifetime
For washing machines, dishwashers, icemakers, single lever faucets and even toilets
ASSE 1010 | cCSAus Certified | NSF/ANSI 61-G | UPC Certified
Product Details
Attributes
Resources
dahl Supply Stop Valve With Integral Water Hammer Arrester, 1/2 x 3/8 in Nominal, Female Solder x Compression Connection, Brass Trim, Brass Body, Zinc Handle, Handle Actuator, 1.8 Cv Flow Coefficient (Cv), Finish: Chrome-Plated, Additional Information: 1.2 in Top to Inlet Center, Lead-Free
Connection Type:Female Solder x Compression
Country Of Origin:Canada
Nominal Size:1/2 x 3/8 in
Type:Angle
Actuator Type:Handle
Additional Information:1.2 in Top to Inlet Center, Lead-Free
Body Material:Brass
Finish:Chrome-Plated
Fitting/Connector Type:Female Copper Solder x Copper OD Compression
Flow Coefficient (Cv):1.8 Cv
Handle Material:Zinc
Inlet Connection:Fem. Solder
Inlet Size:1/2 in
Material:Lead-Free Brass
Operation:Plated Handle
Outlet Connection:3/8 OD Comp
Outlet Size:1/4 in
Pattern:Angle
Trim Material:Brass
Working Pressure:250 psi
Working Temperature:250 deg F
Product Details
dahl Supply Stop Valve With Integral Water Hammer Arrester, 1/2 x 3/8 in Nominal, Female Solder x Compression Connection, Brass Trim, Brass Body, Zinc Handle, Handle Actuator, 1.8 Cv Flow Coefficient (Cv), Finish: Chrome-Plated, Additional Information: 1.2 in Top to Inlet Center, Lead-Free
Attributes
Connection Type: Female Solder x Compression
Country Of Origin: Canada
Nominal Size: 1/2 x 3/8 in
Type: Angle
Actuator Type: Handle
Additional Information: 1.2 in Top to Inlet Center, Lead-Free
Body Material: Brass
Finish: Chrome-Plated
Fitting/Connector Type: Female Copper Solder x Copper OD Compression
Flow Coefficient (Cv): 1.8 Cv
Handle Material: Zinc
Inlet Connection: Fem. Solder
Inlet Size: 1/2 in
Material: Lead-Free Brass
Operation: Plated Handle
Outlet Connection: 3/8 OD Comp
Outlet Size: 1/4 in
Pattern: Angle
Trim Material: Brass
Working Pressure: 250 psi
Working Temperature: 250 deg F
