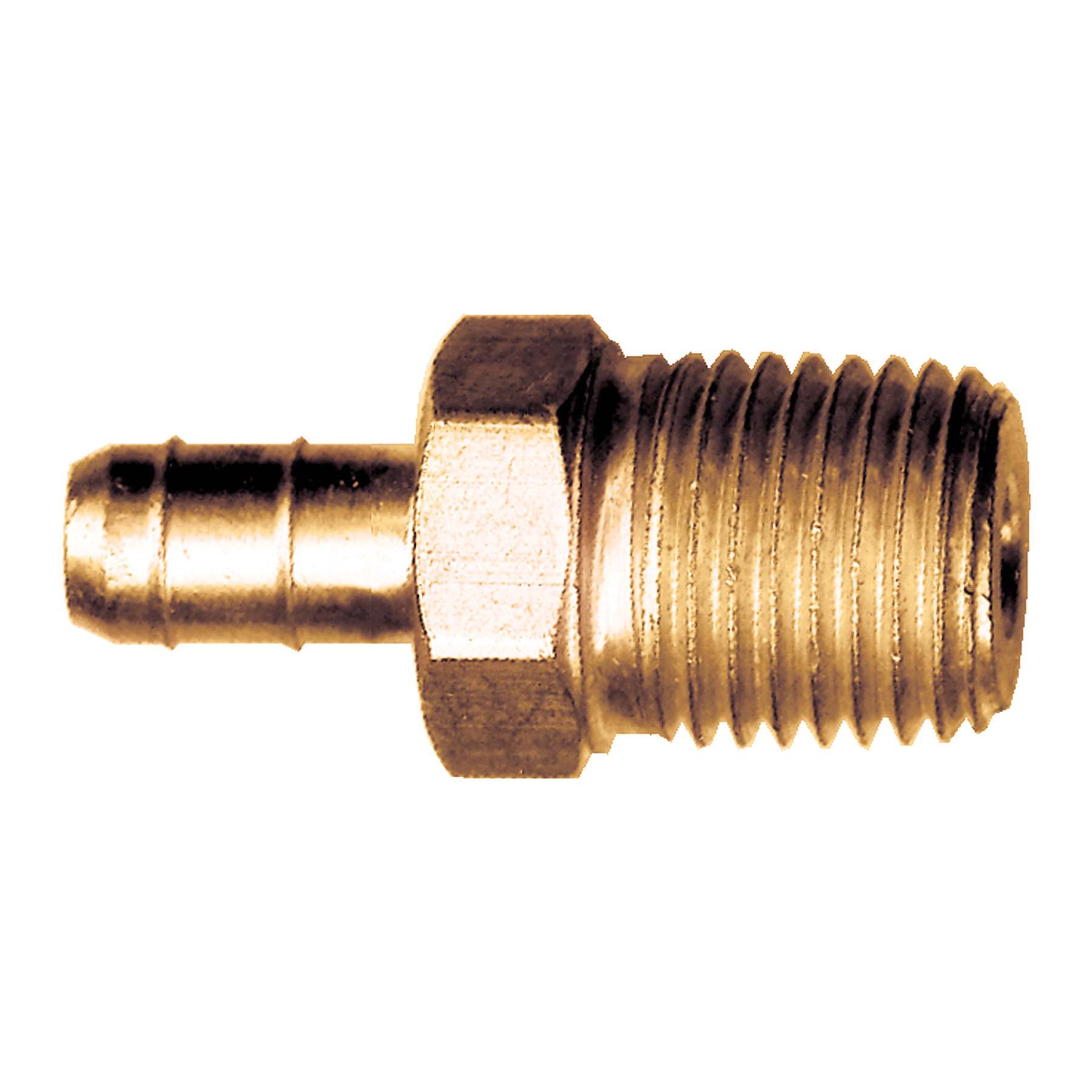

FAIRVIEW 968-4A 1/4 X 1/8 T X MIP ADAPT
MFR Part #: 968-4A
SKU #: 0121317
Brand: Fairview
UPC: 741330023986
Fairview 968-4A Pipe Connector, 0.17 in ID x 0.25 in OD x 0.125 in Nominal, Barb x MNPT End Style, Brass, Import
1 year
359/360 Series Polyethylene Tube, Automotive, General Purpose Air, Industrial, Low Pressure, Plumbing, Trailer, Truck and Water Applications
Product Details
Attributes
Features
Resources
Fairview Pipe Connector, Series: 968, Connector Fitting/Connector, 0.17 in ID x 0.25 in OD x 0.125 in Nominal, Barb x MNPT End Style, 0.96 in Length, 1 Barb, 280 psi Pressure, -40 to 250 deg F, Brass, 0.44 in W x 0.44 in H Dimensions, Import
Country Of Origin:
Taiwan
Fitting/Connector Type:
Connector
Material:
Brass
Nominal Size:
0.17 in ID x 0.25 in OD x 0.125 in
Temperature Rating:
-40 to 250 deg F
Connection Type:
Barb x MNPT
Dimensions:
0.44 in W x 0.44 in H
Domestic/Import:
Import
Length:
.96 in
Number of Barb:
1
Pressure Rating:
280 psi
Series:
968
- CA360 brass construction prevents rust and corrosion
- The barb has a raised ring that imbeds into the tube
- This assures a leakproof connection when used within the normal temperature and pressure range of the tube
- Simply push fitting into tube to assemble
- No tools or clamps required
Product Details
Fairview Pipe Connector, Series: 968, Connector Fitting/Connector, 0.17 in ID x 0.25 in OD x 0.125 in Nominal, Barb x MNPT End Style, 0.96 in Length, 1 Barb, 280 psi Pressure, -40 to 250 deg F, Brass, 0.44 in W x 0.44 in H Dimensions, Import
Attributes
Country Of Origin: Taiwan
Fitting/Connector Type: Connector
Material: Brass
Nominal Size: 0.17 in ID x 0.25 in OD x 0.125 in
Temperature Rating: -40 to 250 deg F
Connection Type: Barb x MNPT
Dimensions: 0.44 in W x 0.44 in H
Domestic/Import: Import
Length: .96 in
Number of Barb: 1
Pressure Rating: 280 psi
Series: 968
Features
- CA360 brass construction prevents rust and corrosion
- The barb has a raised ring that imbeds into the tube
- This assures a leakproof connection when used within the normal temperature and pressure range of the tube
- Simply push fitting into tube to assemble
- No tools or clamps required
