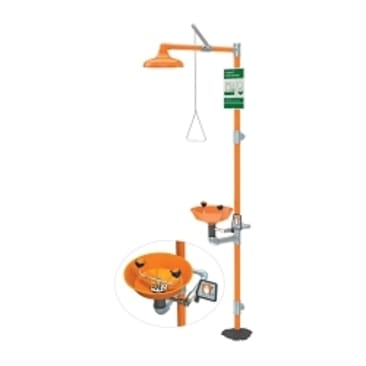

GUARDIAN G1902P EYE WASH/SHWR SAFETY ST PLASTIC HEAD&BOWL
Product Details
Attributes
Features
Resources
Guardian Combination Eyewash and Shower Safety Unit, Galvanized Steel Pipe, ABS Plastic Eyewash Bowl, ABS Plastic Shower Head, 10 in Diameter Head, 11-3/4 in Diameter Bowl, 29 in Shower Handle Length, Stainless Steel Shower Handle, Floor Mounting, Specifications Met: ANSI Z358.1-2014, cUPC 8116, Orange, Galvanized Steel Fitting, Pull Rod Handle Operation
- Eyewash features a plastic bowl with two GS-Plus™ spray-type outlet heads that deliver a flood of water for rinsing eyes
- Shower head - 10 in dia orange Abs plastic with 20 gpm flow control
- Shower valve - 1 in IPS chrome-plated brass stay open ball valve
- Valve is US-made with chrome-plated brass ball and PTFE seals
- Furnished with stainless steel actuating arm and 29 in stainless steel pull rod
- Spray head assembly - two GS-Plus™ spray heads
- Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow
- Eyewash valve - 1/2 in IPS chrome-plated brass stay open ball valve
- Pipe and fittings - schedule 40 galvanized steel
- Furnished with orange polyethylene pipe covers for high-visibility and corrosion resistance
- Supply - 1-1/4 in NPT female top or side inlet
- Waste - 1-1/4 in NPT female outlet
- Outlet can be positioned at either 9-1/4 in or 19-5/8 in above finished floor by reversing lower pipe nipples
- Quality assurance - valve and spray head assemblies are factory assembled and water tested prior to shipment
