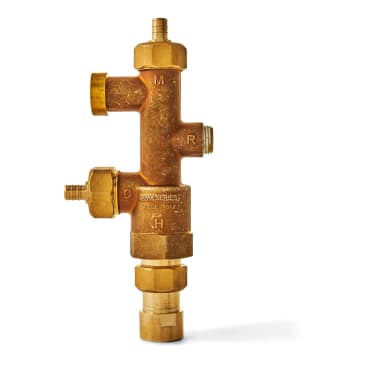

HONEYWELL AMX100-UCPVC-1LF/U Image 1

HONEYWELL AMX100-UCPVC-1LF/U 1/2 CPVC UNION LEAD FREE MIX VALVE 70-145F

MFR Part #: AMX100-UCPVC-1LF/U
SKU #: 1107798
Brand: Honeywell
UPC: 085267338059
Resideo Braukmann DirectConnect™ AMX100-UCPVC-1LF/U Thermostatic Mixing Valve, 1/2 in Nominal, CPVC Union End Style, Brass/Stainless Steel Body, Import
1 Year
Check Valves cold water port|Union coupled tailpiece
Domestic Water, Nursing Homes, Public Facilities, Automatic Faucets, Radiant Floor Heating, Space Heating, Combo Systems, Solar Hot Water, Greenhouses, Industrial Applications, Photo Processing and Heat Pump System
ASSE 1017 Certified|CSA Listed|IAPMO Listed|The wettable surface of lead-free models contain less than 0.25% of lead by weighted average

Resideo Braukmann DirectConnect™ Thermostatic Mixing Valve, Series: AMX, 1/2 in Nominal, CPVC Union, 90 to 130 deg F, Brass/Stainless Steel Body, PTFE Coated, Import

Honeywell AMX series DirectConnect™ reduces water heater installation time as the cold and hot port position eliminates the need for typical elbows and tees. Designed for safety to prevent scalding, it also increases user comfort.

Product Details

Resideo Braukmann DirectConnect™ Thermostatic Mixing Valve, Series: AMX, 1/2 in Nominal, CPVC Union, 90 to 130 deg F, Brass/Stainless Steel Body, PTFE Coated, Import

Honeywell AMX series DirectConnect™ reduces water heater installation time as the cold and hot port position eliminates the need for typical elbows and tees. Designed for safety to prevent scalding, it also increases user comfort.

Attributes

Connection Type: CPVC Union
Country Of Origin: Mexico
Nominal Size: 1/2 in
Body Material: Brass/Stainless Steel
Domestic/Import: Import
Finish: PTFE Coated
Series: AMX
Temperature Rating: 90 to 130 deg F

Features

  • Designed to be installed directly on the water heater hot port
  • Dual purpose mixing or diverting valve
  • Constant water temperature under different operating conditions
  • Flow reduction in seconds if cold water supply is interrupted
  • Heat trapping not required
  • Recirculation connection for fast response
  • Bronze/stainless construction
  • Teflon coated wear surfaces to prevent lime deposits
  • Maximum pressure differential between hot and cold ports is 7 psi (48 kPa)
