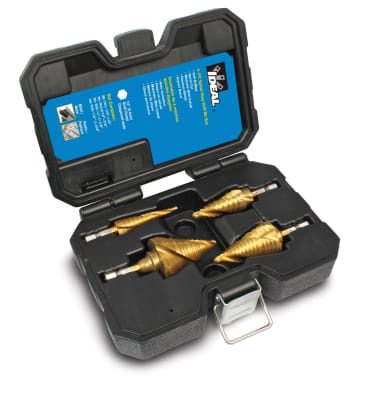

IDEAL 36-700 Image 1

IDEAL 36-700 SPIRAL STEP BIT KIT

MFR Part #:Ā 36-700
SKU #:Ā 1280326
Brand:Ā IDEALĀ®
UPC:Ā 783250798919
IDEALĀ® 36-700 Spiral Step Drill Bit Kit, 1/8 in, 3/16 in, 1/4 in Min Drill Bit, 1/2 in, 7/8 in, 1-1/8 in, 1-3/8 in Max Drill Bit, 4 Pieces, M35 HSS/Cobalt, TiN
36-701 #1 Step Drill Bit, 36-703 #4 Step Drill Bit, 36-705 #9 Step Drill Bit, 36-706 #6 Step Drill Bit and Rugged and Durable Molded Plastic Case with Metal Latch
RoHS Compliant

IDEALĀ® Step Drill Bit Kit, Spiral, Imperial System of Measurement, 1/8 in, 3/16 in, 1/4 in Minimum Drill Bit Size, 1/2 in, 7/8 in, 1-1/8 in, 1-3/8 in Maximum Drill Bit Size, 4 Piece, Specifications: 13, 12, 15 Number of Steps, 1/8 in, 1/16 in, 1/16 to 1/4 in THK Step, 1/32 in, 1/16 in, 1/8 in Step Increment, Spiral Flute, 1/4 in Hex Shank, Split Point, Mild Steel, Aluminum, Copper, Brass and Plastic Applicable Materials, M35 HSS/Cobalt, TiN

The IDEALĀ® line of spiral step bits enables you to save time with titanium nitride spiral cutting action. Each step has a gradual relief that eases into each cut reducing the need to change drill bits. This provides an economical way to save you valuable time on the project. Manufactured out of M35 high speed steel with Cobalt, providing strength and durability, the bit design has balanced hardened edges and 1/4 in hex shank that makes them compatible not only with cordless drills but also optimized for impact drivers. The split point tip eliminates the need for a starter pilot hole and minimizes walking on the material for quick startup on any project. Titanium nitride coating lowers the cooling time, extending the life for repetitive drilling through the toughest of materials. IDEALĀ® step drill bits feature a spiral cutting action providing faster chip removal, less vibration and faster drilling rate which minimizes binding while drilling.

Product Details

IDEALĀ® Step Drill Bit Kit, Spiral, Imperial System of Measurement, 1/8 in, 3/16 in, 1/4 in Minimum Drill Bit Size, 1/2 in, 7/8 in, 1-1/8 in, 1-3/8 in Maximum Drill Bit Size, 4 Piece, Specifications: 13, 12, 15 Number of Steps, 1/8 in, 1/16 in, 1/16 to 1/4 in THK Step, 1/32 in, 1/16 in, 1/8 in Step Increment, Spiral Flute, 1/4 in Hex Shank, Split Point, Mild Steel, Aluminum, Copper, Brass and Plastic Applicable Materials, M35 HSS/Cobalt, TiN

The IDEALĀ® line of spiral step bits enables you to save time with titanium nitride spiral cutting action. Each step has a gradual relief that eases into each cut reducing the need to change drill bits. This provides an economical way to save you valuable time on the project. Manufactured out of M35 high speed steel with Cobalt, providing strength and durability, the bit design has balanced hardened edges and 1/4 in hex shank that makes them compatible not only with cordless drills but also optimized for impact drivers. The split point tip eliminates the need for a starter pilot hole and minimizes walking on the material for quick startup on any project. Titanium nitride coating lowers the cooling time, extending the life for repetitive drilling through the toughest of materials. IDEALĀ® step drill bits feature a spiral cutting action providing faster chip removal, less vibration and faster drilling rate which minimizes binding while drilling.

Attributes

Color:Ā Gold
Country Of Origin:Ā China
Cutting Edge Material:Ā M35 HSS
Finish:Ā Tin
Material:Ā M35 HSS/Cobalt
Number of Steps:Ā Multiple
Type:Ā Spiral
Hole Diameter:Ā Multiple
Impact Rated:Ā Yes
Maximum Drill Bit Size:Ā 1/2 in, 7/8 in, 1-1/8 in, 1-3/8 in
Minimum Drill Bit Size:Ā 1/8 in, 3/16 in, 1/4 in
Number of Pieces:Ā 4
Specifications:Ā 13, 12, 15 Number of Steps, 1/8 in, 1/16 in, 1/16 to 1/4 in THK Step, 1/32 in, 1/16 in, 1/8 in Step Increment, Spiral Flute, 1/4 in Hex Shank, Split Point, Mild Steel, Aluminum, Copper, Brass and Plastic Applicable Materials
System of Measurement:Ā Imperial

Features

  • Rugged, durable molded plastic case with metal latch
  • Kit provides a solution for every electrical hole size between 1/8 in-and 1-3/8 in
  • Recommended rpm for step drill bits less than or equal to 7/8 in 470 to 650 rpm
