LEVITON 420P5WLEV 20A PIN & SLEEVE PLUG BLACK
MFR Part #: 420P5WLEV
SKU #: 1263574
Brand: Leviton®
UPC: 7847732034

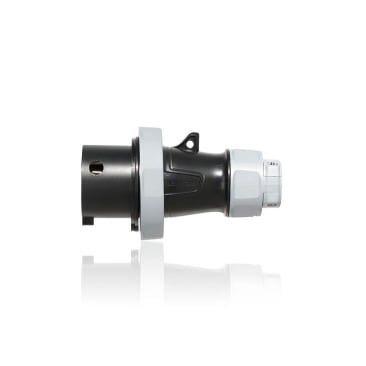

Leviton® 420P5WLEV LEV Series Watertight Pin and Sleeve Plug, 600 V AC, 20 A, 3 Poles, 4 Wires, Black
5 Years
CE certification | UL 1686 C2 | UL 1682 | CSA C22.2 No 182.1-13 | RoHS Compliant | 14159-1 NSF
Product Details
Attributes
Features
Resources
Leviton®, 420P5WLEV, Pin and Sleeve Plug, Watertight, Series: LEV Series, 600 V AC, 20 A, 10 hp, 3 Pole, 4 Wires, NEMA 3R/4X/6P/12 NEMA Rating, Industrial Grade, IP66/IP67/IP68/IP69K Enclosure, -40 to 60 deg C, Stainless Steel/Nylon/Nickel Plated Brass, Black
Amperage Rating:20 A
Country Of Origin:Mexico
Voltage Rating:600 V AC
Color:Black
Enclosure:IP66/IP67/IP68/IP69K
Grade:Industrial
Horsepower:10 hp
Material:Stainless Steel/Nylon/Nickel Plated Brass
NEMA Rating:NEMA 3R/4X/6P/12
Number of Poles:3
Number of Wires:4
Series:LEV Series
Temperature Rating:-40 to 60 deg C
Type:Watertight
- Simplify Installation
- All plugs and connectors and 60 and 100 Amp inlets and receptacles constructed of impact modified nylon
- 20 and 30 Amp inlets and receptacles constructed of PBT
- Nickel-plated brass pins and sleeves and stainless steel hardware for added corrosion-resistance
- Plugs & connectors available with alternate screwless clamp (20/30 A only) or power indication with Inform technology
- Watertight and dust-tight rated to IP66, IP67, IP68 and IP69K
Product Details
Leviton®, 420P5WLEV, Pin and Sleeve Plug, Watertight, Series: LEV Series, 600 V AC, 20 A, 10 hp, 3 Pole, 4 Wires, NEMA 3R/4X/6P/12 NEMA Rating, Industrial Grade, IP66/IP67/IP68/IP69K Enclosure, -40 to 60 deg C, Stainless Steel/Nylon/Nickel Plated Brass, Black
Attributes
Amperage Rating: 20 A
Country Of Origin: Mexico
Voltage Rating: 600 V AC
Color: Black
Enclosure: IP66/IP67/IP68/IP69K
Grade: Industrial
Horsepower: 10 hp
Material: Stainless Steel/Nylon/Nickel Plated Brass
NEMA Rating: NEMA 3R/4X/6P/12
Number of Poles: 3
Number of Wires: 4
Series: LEV Series
Temperature Rating: -40 to 60 deg C
Type: Watertight
Features
- Simplify Installation
- All plugs and connectors and 60 and 100 Amp inlets and receptacles constructed of impact modified nylon
- 20 and 30 Amp inlets and receptacles constructed of PBT
- Nickel-plated brass pins and sleeves and stainless steel hardware for added corrosion-resistance
- Plugs & connectors available with alternate screwless clamp (20/30 A only) or power indication with Inform technology
- Watertight and dust-tight rated to IP66, IP67, IP68 and IP69K
