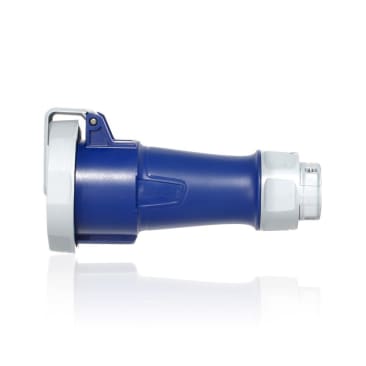

LEVITON 430C9WLEV 30A PIN & SLEEVE CONNECTOR BLUE
MFR Part #: 430C9WLEV
SKU #: 1263576
Brand: Leviton®
UPC: 7847792124
Leviton® 430C9WLEV LEV 3-Phase 9-Clock PositionDust/Watertight Pin and Sleeve Connector With Standard Clamp, 250 VAC, 30 A, 3 Poles, 4 Wires, Blue
5 years
Food and Beverage Facilities, Washdown and Outdoor Applications
CE Certified | CSA C22.2 No 182.1-13 | IEC 60309-1/60309-2 | NOM-ANCE Certified | NSF 14159-1 | UL 1686 C2/1682
Product Details
Attributes
Features
Resources
Leviton® Pin and Sleeve Connector, 3-Phase 9-Clock PositionDust/Watertight, Series: LEV, 250 VAC, 30 A, 3 hp, 3 Pole, 4 Wires, NEMA 3R/4X/6P/12 NEMA Rating, Industrial Grade, IP66/IP67/IP68/IP69K Enclosure, -40 to 60 deg C, Screw Terminal, Nylon, Blue, 7.84 in L x 4.06 in H
Amperage Rating:
30 A
Country Of Origin:
Mexico
Voltage Rating:
250 VAC
Color:
Blue
Dimensions:
7.84 in L x 4.06 in H
Enclosure:
IP66/IP67/IP68/IP69K
Grade:
Industrial
Horsepower:
3 hp
Material:
Nylon
NEMA Rating:
NEMA 3R/4X/6P/12
Number of Poles:
3
Number of Wires:
4
Series:
LEV
Temperature Rating:
-40 to 60 deg C
Terminal Type:
Screw
Type:
3-Phase 9-Clock PositionDust/Watertight
- Designed to simplify your installation, endure the harshest environments and outlast the competition
- Improved speed of assembly with threaded housings that have less screws for reduced installation time
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive submersible IP68
- North American configuration
Product Details
Leviton® Pin and Sleeve Connector, 3-Phase 9-Clock PositionDust/Watertight, Series: LEV, 250 VAC, 30 A, 3 hp, 3 Pole, 4 Wires, NEMA 3R/4X/6P/12 NEMA Rating, Industrial Grade, IP66/IP67/IP68/IP69K Enclosure, -40 to 60 deg C, Screw Terminal, Nylon, Blue, 7.84 in L x 4.06 in H
Attributes
Amperage Rating: 30 A
Country Of Origin: Mexico
Voltage Rating: 250 VAC
Color: Blue
Dimensions: 7.84 in L x 4.06 in H
Enclosure: IP66/IP67/IP68/IP69K
Grade: Industrial
Horsepower: 3 hp
Material: Nylon
NEMA Rating: NEMA 3R/4X/6P/12
Number of Poles: 3
Number of Wires: 4
Series: LEV
Temperature Rating: -40 to 60 deg C
Terminal Type: Screw
Type: 3-Phase 9-Clock PositionDust/Watertight
Features
- Designed to simplify your installation, endure the harshest environments and outlast the competition
- Improved speed of assembly with threaded housings that have less screws for reduced installation time
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive submersible IP68
- North American configuration
