LIBERTY 293-2 Image 1

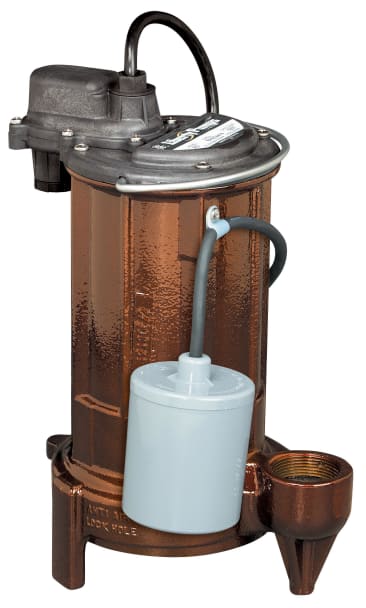

LIBERTY 293-2 SUB SUMP PUMP 3/4HP 115V 25FT CORD WAP

MFR Part #: 293-2
SKU #: 1154439
Brand: Liberty Pumps®
UPC: 671812120998
Liberty Pumps® 293-2 290, 77 gpm Flow Rate, 1-1/2 in Outlet, 1 Phase , 3/4 hp, Cast Iron
3 Years Limited
cCSAus Certified | SSPMA Certified | PROP65: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Liberty Pumps®, 293-2, Series: 290, 77 gpm Flow Rate, 1-1/2 in Outlet, 48 ft Maximum Head, 3/4 hp, 115 V AC, 10.4 A, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJTW 25 ft Cord, Vortex Impeller, 248 deg F Thermal Overload, Ball/Race Bearing, Cast Iron, 10 in W x 13 in H Dimensions

Product Details

Liberty Pumps®, 293-2, Series: 290, 77 gpm Flow Rate, 1-1/2 in Outlet, 48 ft Maximum Head, 3/4 hp, 115 V AC, 10.4 A, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJTW 25 ft Cord, Vortex Impeller, 248 deg F Thermal Overload, Ball/Race Bearing, Cast Iron, 10 in W x 13 in H Dimensions

Attributes

Country Of Origin: US
Flow Rate: 77 gpm
Horsepower: 3/4 hp
Voltage Rating: 115 V AC
Amperage Rating: 10.4 A
Bearing Type: Ball/Race
Cord Type: SJTW 25 ft
Dimensions: 10 in W x 13 in H
Frequency Rating: 60 Hz
Impeller Type: Vortex
Material: Cast Iron
Maximum Head: 48 ft
Motor Speed: 3450 rpm
Outlet Size: 1-1/2 in
Phase: 1
Series: 290
Temperature Rating: 248 deg F Thermal Overload

Features

  • Liberty's unique, one-piece UniBody casting
  • Quick-connect power cord
  • Permenantly lubricated upper and lower bearings
  • Oil-filled, hermetically dealed motors with thermal overload protection
  • Stainless steel, removable bottom screen
  • Wide angle float with series (piggy-back) plug

Resources

Instruction/Installation Manual
Specification Sheet
Warranty Information
