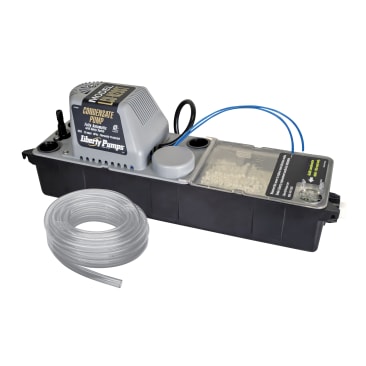

LIBERTY LCU-N20ST Image 1

LIBERTY LCU-N20ST 115V NEUTRALIZING CONDENSATE PUMP WITH SAFETY SWITCH & 20FT TUBING

MFR Part #:Ā LCU-N20ST
SKU #:Ā 1286493
Brand:Ā Liberty PumpsĀ®
UPC:Ā 671812114133
Liberty PumpsĀ® LCU-N20ST Fully Automatic Thermally Protected Neutralizing Condensate Pump With Overflow Safety Switch and 20 ft Tubing Kit, 3/4 in Inlet x 3/8 in Outlet, 1/30 hp Power Rating
3 Years Limited
High-Efficiency Furnaces, High-Efficiency Boilers, High-Efficiency Hot Water Heaters, Other Acidic Condensate Generating Applications, AC Equipment, Ice Machines, Drinking Fountains, De-Humidifiers and Other Applications Requiring Condensate Removal
cCSAus Certified

Liberty PumpsĀ® Neutralizing Condensate Pump, Fully Automatic Thermally Protected, Series: LCU-N Series, 3/4 in Inlet, 3/8 in Outlet, 1/30 hp, 115 V, 1.5 A Electrical Rating, 2 US qt Reservoir, Wall Mount, 150 deg F, ABS, 11-1/8 in L x 5 in W x 6-1/2 in H Dimensions

For neutralization and removal of acidic condensate produced by high-efficiency combustion equipment. When not neutralized, acidic condensate has the potential to harm the environment and any plumbing it comes in contact with due to its acidic nature. This unit features inlet connections for standard condensate removal from furnaces, A/C equipment, ice machines, drinking fountains, beverage machines, dehumidifiers, and other applications requiring condensate removal. These inlets are separated from the neutralizer media to extend the life of the media as long as possible.

Product Details

Liberty PumpsĀ® Neutralizing Condensate Pump, Fully Automatic Thermally Protected, Series: LCU-N Series, 3/4 in Inlet, 3/8 in Outlet, 1/30 hp, 115 V, 1.5 A Electrical Rating, 2 US qt Reservoir, Wall Mount, 150 deg F, ABS, 11-1/8 in L x 5 in W x 6-1/2 in H Dimensions

For neutralization and removal of acidic condensate produced by high-efficiency combustion equipment. When not neutralized, acidic condensate has the potential to harm the environment and any plumbing it comes in contact with due to its acidic nature. This unit features inlet connections for standard condensate removal from furnaces, A/C equipment, ice machines, drinking fountains, beverage machines, dehumidifiers, and other applications requiring condensate removal. These inlets are separated from the neutralizer media to extend the life of the media as long as possible.

Attributes

Reservoir Capacity:Ā 2 US qt
Dimensions:Ā 11-1/8 in L x 5 in W x 6-1/2 in H
Electrical Ratings:Ā 115 V, 1.5 A
Inlet Size:Ā 3/4 in
Material:Ā ABS
Mounting Type:Ā Wall
Outlet Size:Ā 3/8 in
Power Rating:Ā 1/30 hp
Series:Ā LCU-N Series
Temperature Rating:Ā 150 deg F
Type:Ā Fully Automatic Thermally Protected

Features

  • Prevents expensive repairs due to corroding drains and sewer systems
  • Neutralized condensate is environmentally safer compared to acidic condensate
  • Smaller magnesium oxide pellets offer faster neutralizing of high PH water over larger size media
  • High impact ABS tank
  • Removable check valve
  • Stainless steel shaft
  • Quiet operation
  • 6 ft power cord with ground
  • Built-in overflow safety switch
