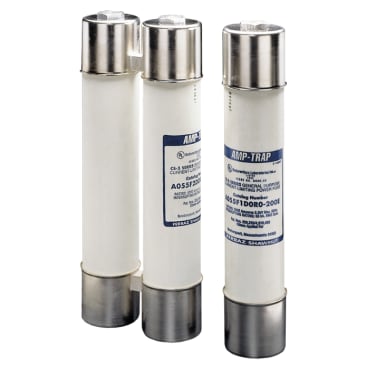

MERSEN A055F1D0R0-200E 5.5KV 200E TRANSFORMER FUSE
Product Details
Attributes
Features
Resources
Mersen AMP-TRAP® General Purpose Fuse, 1-Barrel Current Limiting General Purpose Medium Voltage, Series: CS-3, Indicating, 200 A, 5.5 kV AC, 63 kA Interrupt, Class: E, Ferrule Terminal, Clip Mounting, Ferrule Body, Fiber, 3 in Dia x 15.88 in L Body
Mersen fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They have 2" (size C), 3" (size D) and 2x3" (size DD) inch diameter barrels with ferrules and are mounted in spring reinforced clips.
- Amp-Trap® CS-3 series are UL listed for compatibility with UL listed equipment
- Ferrule mounting for standard clips and interchangeability with other brands of fuses
- Current limiting for superior equipment protection
- Non-venting for silent operation
- Metal embossed catalog number and manufacturing date for lasting identification
- Blown fuse indicator to give positive identification of open fuse
- 9F60/9F62: 0.125 lb tripped force 0.2 in
- Amp-Trap® 2 in barrel 1 lb tripped force - 0.19 in
- Amp-Trap® 3 in barrel 2 lb tripped force - 1/2 in
- Silver plated copper contact
- Outdoor usage for the 9F62 type EJO
- 12 in clip centers
