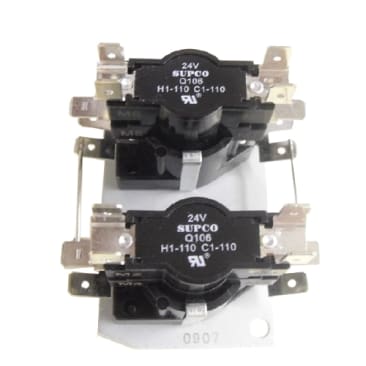

SUPCO Q106 Image 1

SUPCO Q106 1-110 SECONDS SEQUENCER

MFR Part #: Q106
SKU #: 1291454
Brand: Supco®
UPC: 400051889560
Supco® Q106 Q Series Sequencer, 2 Switches, 1 to 110 s Switch On, 1 to 110 s Switch Off
Oil Furnaces, Gas Furnaces, Heat Pumps, Electric Furnaces
CSA Approved|UL Listed|OEM Approved

Supco® Sequencer, Series: Q Series, 2 Switches, 1 to 110 s Switch On, 1 to 110 s Switch Off, Resistive: 25 A at 240 VAC, Pilot Duty: 125 VA at 120/480 VAC, 24 V Control, 1-7/8 in H x 3-1/4 in W x 2 in D

Q Series Sequencer, field proven for controlling the operation of heating elements and/or blower motors in electric, gas or oil heat systems. This sequencer has 2 switches and turns on at 1-110 s, and off at 1-110 s.

Product Details

Supco® Sequencer, Series: Q Series, 2 Switches, 1 to 110 s Switch On, 1 to 110 s Switch Off, Resistive: 25 A at 240 VAC, Pilot Duty: 125 VA at 120/480 VAC, 24 V Control, 1-7/8 in H x 3-1/4 in W x 2 in D

Q Series Sequencer, field proven for controlling the operation of heating elements and/or blower motors in electric, gas or oil heat systems. This sequencer has 2 switches and turns on at 1-110 s, and off at 1-110 s.

Attributes

Dimensions1-7/8 in H x 3-1/4 in W x 2 in D
SeriesQ Series
Control Voltage24 V
Number of Switches2
Pilot Duty Rating125 VA at 120/480 VAC
Resistive Rating25 A at 240 VAC
Switch Off Time1 to 110 s
Switch On Time1 to 110 s

Features

  • Five second delay between all subsequent stages, unless they function together
  • Contacts M1-M2 will turn on 1st and turn off last
