WATTS 0123628 LFIS6301 1/2 SWT BALL VALVE WITH DRAIN
Product Details
Attributes
Features
Resources

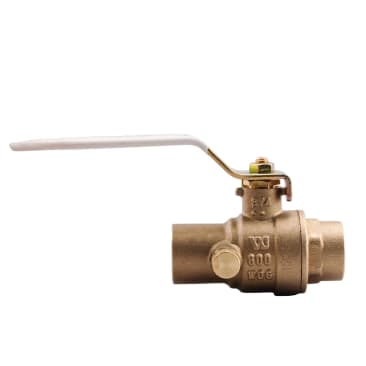

WATTS® Ball Valve, 2-Piece, 1/2 in Nominal, Solder End Style, 600 psi Pressure, 0 to 350 deg F, Full Port, Media: Gas/Liquids, Copper Silicon Alloy Ball, 2-1/8 in Inlet to Outlet Length, 1-9/16 in Top to Inlet Center, Brass Body, Brass Stem Trim, PTFE/NBR Softgoods, Import
This 1/2 inch two-piece, full port ball and waste ball valve is used in commercial and industrial applications. It features a side drain waste port that allows draining or venting of the downstream line when the valve is in the closed position. It has a lead free brass body, 1/2 inch solder end connections, adjustable packing gland, chrome plated lead free brass ball, virgin PTFE seats and seals, and a bottom loaded blowout proof stem. The temperature range is 0 to 350 degrees F (minus 18 to 177 degrees C) and the pressure rating is 600 psi (41 bar) WOG non-shock.
- Virgin PTFE valve seats are standard
- Vinyl insulator on heavy duty handles
- Fast, quarter-turn open or close operation
- Low operating torque
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Side drain waste port for downstream draining or venting
- Chrome plated lead free brass ball
Product Details
WATTS® Ball Valve, 2-Piece, 1/2 in Nominal, Solder End Style, 600 psi Pressure, 0 to 350 deg F, Full Port, Media: Gas/Liquids, Copper Silicon Alloy Ball, 2-1/8 in Inlet to Outlet Length, 1-9/16 in Top to Inlet Center, Brass Body, Brass Stem Trim, PTFE/NBR Softgoods, Import
This 1/2 inch two-piece, full port ball and waste ball valve is used in commercial and industrial applications. It features a side drain waste port that allows draining or venting of the downstream line when the valve is in the closed position. It has a lead free brass body, 1/2 inch solder end connections, adjustable packing gland, chrome plated lead free brass ball, virgin PTFE seats and seals, and a bottom loaded blowout proof stem. The temperature range is 0 to 350 degrees F (minus 18 to 177 degrees C) and the pressure rating is 600 psi (41 bar) WOG non-shock.
Attributes
Features
- Virgin PTFE valve seats are standard
- Vinyl insulator on heavy duty handles
- Fast, quarter-turn open or close operation
- Low operating torque
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Side drain waste port for downstream draining or venting
- Chrome plated lead free brass ball
