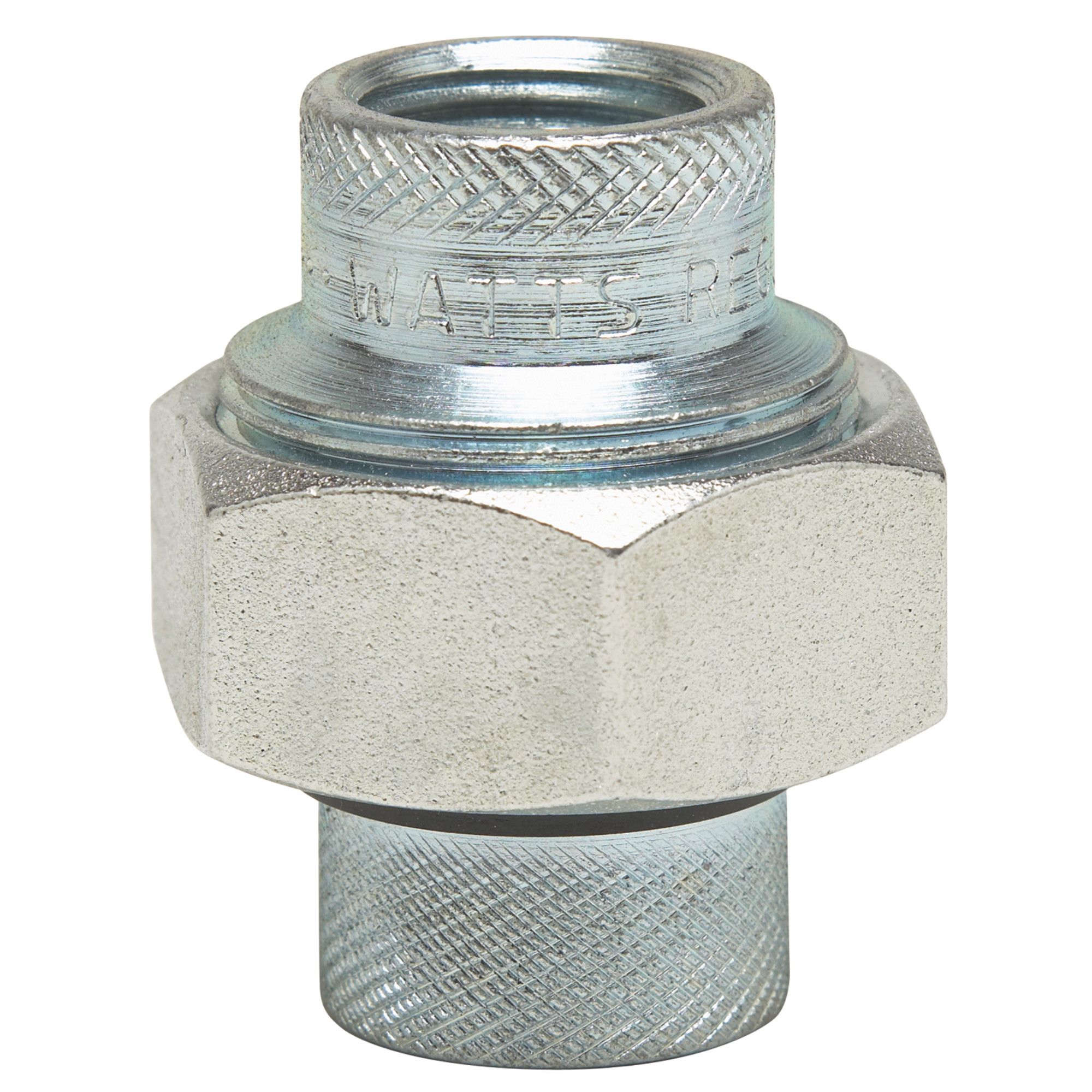

WATTS 0821930 LF3004 1/2 IP STLXZINC PLT DIELECTRIC UNION
Product Details
Attributes
Features
Resources
WATTS® Dielectric Union, 1/2 in Nominal, FNPT, 2-1/4 in Length, 250 psi, Steel, Galvanized, 180 deg F, 1-5/8 in W, Domestic
Series LF3004 Lead Free Dielectric Unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals, and features a female iron pipe thread to female iron pipe thread (galvanized) connection. It consists of a union nut, two tailpieces, and a gasket that separates the tailpieces to prevent an electric current from occurring. Series LF3004 is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping.
- Female iron pipe thread to female iron pipe thread (zinc plated) connections
- Designed and manufactured to the highest quality standards
- Individually factory certified to withstand a minimum of 600 V on a dry line with no flashover
- Polysulfone insulator
- Maximum pressure is 250 psi (17.2 bar)
- Maximum temperature 180 deg F (82 deg C)
Product Details
WATTS® Dielectric Union, 1/2 in Nominal, FNPT, 2-1/4 in Length, 250 psi, Steel, Galvanized, 180 deg F, 1-5/8 in W, Domestic
Series LF3004 Lead Free Dielectric Unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals, and features a female iron pipe thread to female iron pipe thread (galvanized) connection. It consists of a union nut, two tailpieces, and a gasket that separates the tailpieces to prevent an electric current from occurring. Series LF3004 is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping.
Attributes
Features
- Female iron pipe thread to female iron pipe thread (zinc plated) connections
- Designed and manufactured to the highest quality standards
- Individually factory certified to withstand a minimum of 600 V on a dry line with no flashover
- Polysulfone insulator
- Maximum pressure is 250 psi (17.2 bar)
- Maximum temperature 180 deg F (82 deg C)
