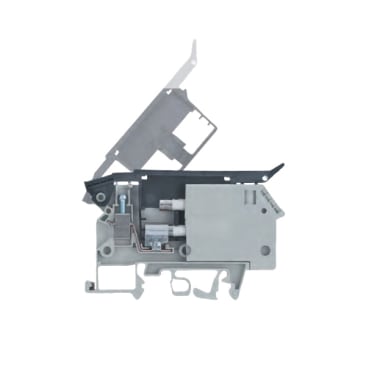

WIELAND 57.904.5355.0 FUSE TERMINAL WK/4/THS15 U/VO
MFR Part #: 57.904.5355.0
SKU #: 1249466
Brand: Wieland
UPC: 4015573392670
Wieland 57.904.5355.0 Integrated Lever Action Fused Terminal Block, 800 V AC, 6.3 A, 22 to 10 AWG Wire, DIN Rail/G Rail Mount
For mounting on TS 35 and TS 32 DIN rails
CSA Certified | UL Listed | UL94V-0 Flammability rating
Product Details
Attributes
Resources
Wieland Fused Terminal Block, Integrated Lever Action, 800 V AC, 6.3 A, 22 to 10 AWG Wire, 8 mm Wire Strip Length, 0.5 N-m, DIN Rail/G Rail Mount, Screw, Thermoplastic Insulation, Gray, 77.2 mm L x 8 mm W
Amperage Rating:6.3 A
Color:Gray
Connection Type:Screw
Dimensions:77.2 mm L x 8 mm W
Material:Thermoplastic Insulation
Mounting Type:DIN Rail/G Rail
Torque Rating:.5 N-m
Type:Integrated Lever Action
Voltage Rating:800 V AC
Wire Size:22 to 10 AWG
Wire Strip Length:8 mm
Product Details
Wieland Fused Terminal Block, Integrated Lever Action, 800 V AC, 6.3 A, 22 to 10 AWG Wire, 8 mm Wire Strip Length, 0.5 N-m, DIN Rail/G Rail Mount, Screw, Thermoplastic Insulation, Gray, 77.2 mm L x 8 mm W
Attributes
Amperage Rating: 6.3 A
Color: Gray
Connection Type: Screw
Dimensions: 77.2 mm L x 8 mm W
Material: Thermoplastic Insulation
Mounting Type: DIN Rail/G Rail
Torque Rating: .5 N-m
Type: Integrated Lever Action
Voltage Rating: 800 V AC
Wire Size: 22 to 10 AWG
Wire Strip Length: 8 mm
