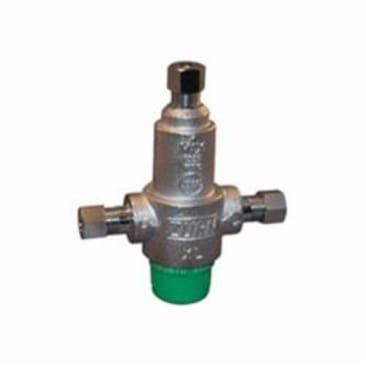

WILKINS ZW3870XLT-4P Image 1

WILKINS 38-ZW3870XLT-4P THERMOSTATIC MIXING VALVE 3/8IN

MFR Part #: ZW3870XLT-4P
SKU #: 1132528
Brand: Zurn®
UPC: 10612052077779
Zurn® Aqua-Gard® ZW3870XLT-4P Lead Free Thermostatic Mixing Valve, 3/8 in, 145 psi, 0.35 to 3.1 gpm, Cast Bronze Body
ASTM B584 Body | ASTM B 927 UNS C274 Internal Brass | ASSE 1070 | CSA Certified | ANSI/NSF 61-9

Zurn® Aqua-Gard® Lead Free Thermostatic Mixing Valve, 3/8 in Nominal, 145 psi, 95 to 115 deg F, 0.35 to 3.1 gpm Flow, Media: Water, 4-3/16 in Inlet to Outlet Length, 2-27/32 in Top to Inlet Center, Cast Bronze Body, FKM Seal, Nickel Plated, 4-27/32 in H

The Aqua-Gard® ZW3870XLT Thermostatic Mixing Valve is designed to be installed with 3/8 in point of use applications (residential and light commercial installations) to mix hot and cold water from the distribution system to a final safer temperature.

Product Details

Zurn® Aqua-Gard® Lead Free Thermostatic Mixing Valve, 3/8 in Nominal, 145 psi, 95 to 115 deg F, 0.35 to 3.1 gpm Flow, Media: Water, 4-3/16 in Inlet to Outlet Length, 2-27/32 in Top to Inlet Center, Cast Bronze Body, FKM Seal, Nickel Plated, 4-27/32 in H

The Aqua-Gard® ZW3870XLT Thermostatic Mixing Valve is designed to be installed with 3/8 in point of use applications (residential and light commercial installations) to mix hot and cold water from the distribution system to a final safer temperature.

Attributes

Nominal Size3/8 in
Body MaterialCast Bronze
Dimensions4-27/32 in H
FinishNickel Plated
Flow Capacity0.35 to 3.1 gpm
Inlet to Outlet Length4-3/16 in
MediaWater
Pressure Rating145 psi
Softgoods MaterialFKM Seal
Temperature Rating95 to 115 deg F
Top to Inlet Center2-27/32 in

Features

  • Most suitable for use with sensor faucets
  • Designed for single fixture use
  • 4 port (1 hot in, 1 cold in, 1 cold out, 1 mixed out)
